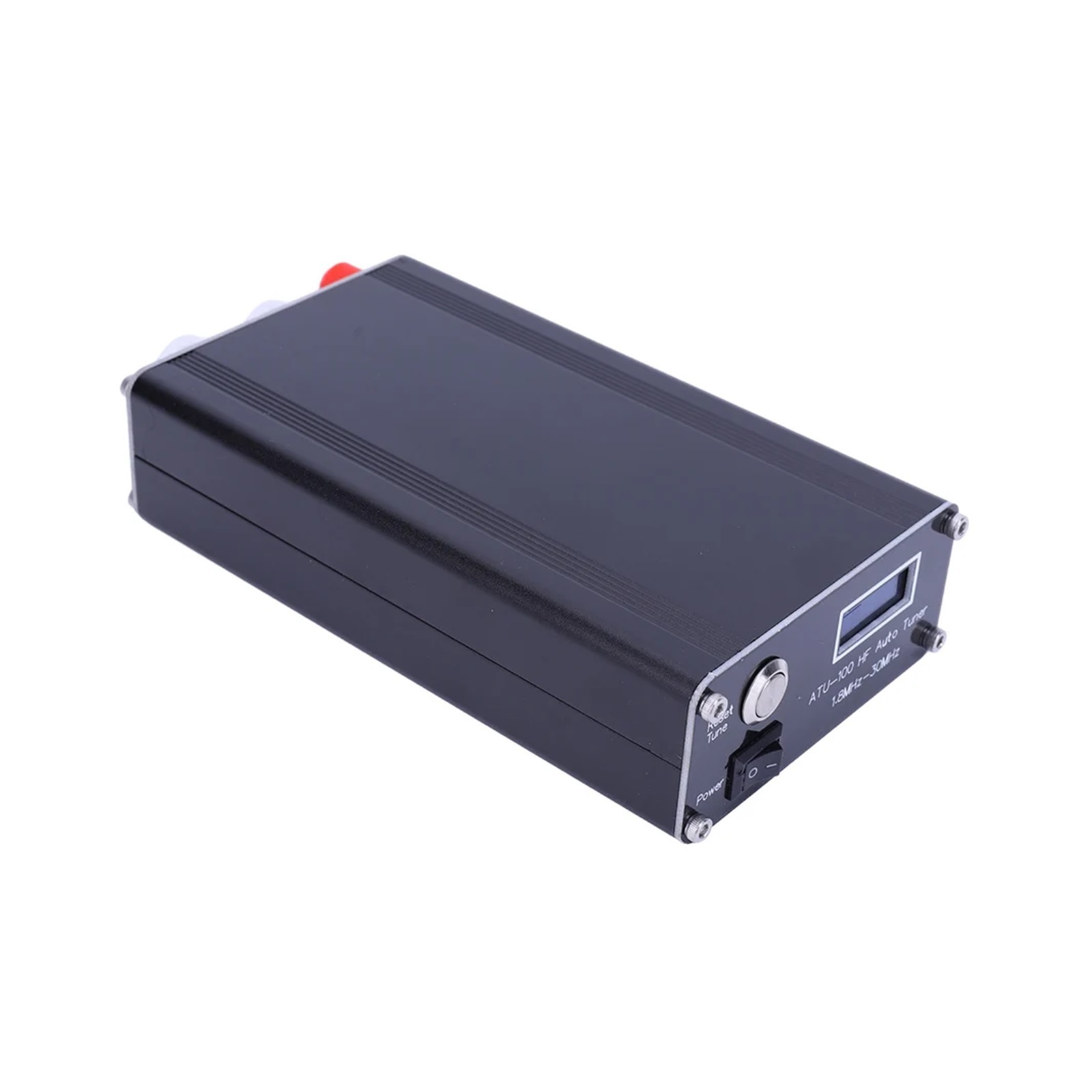

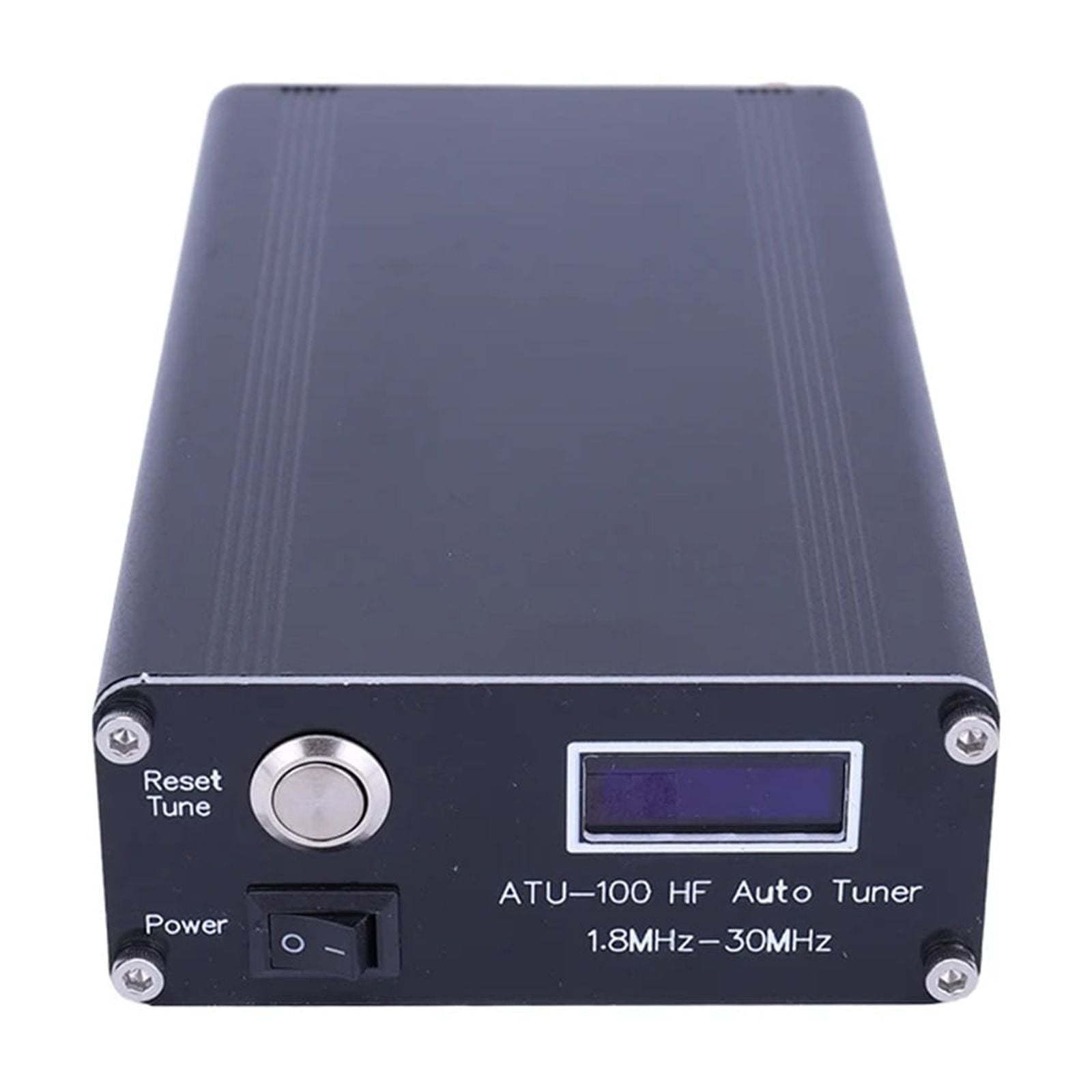

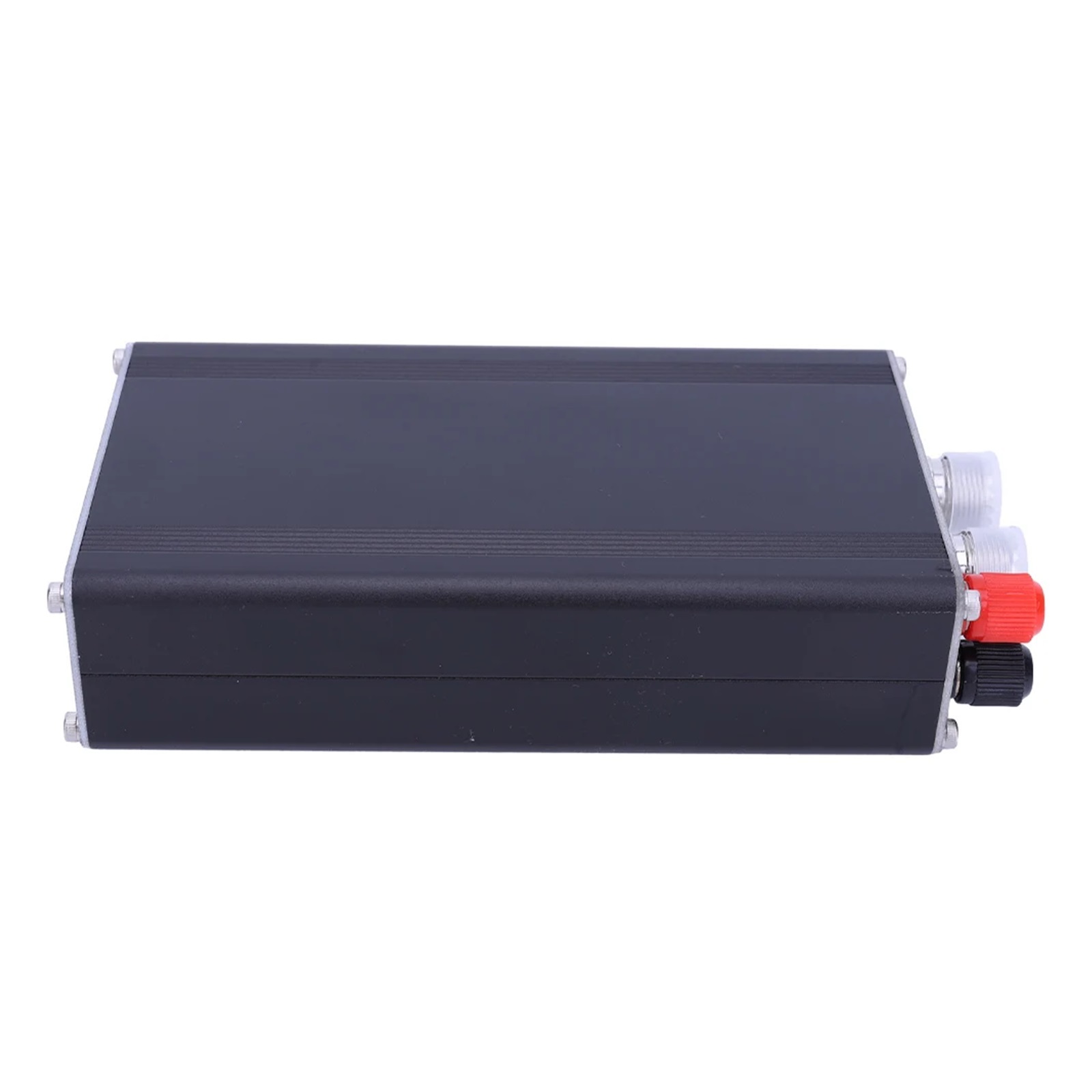

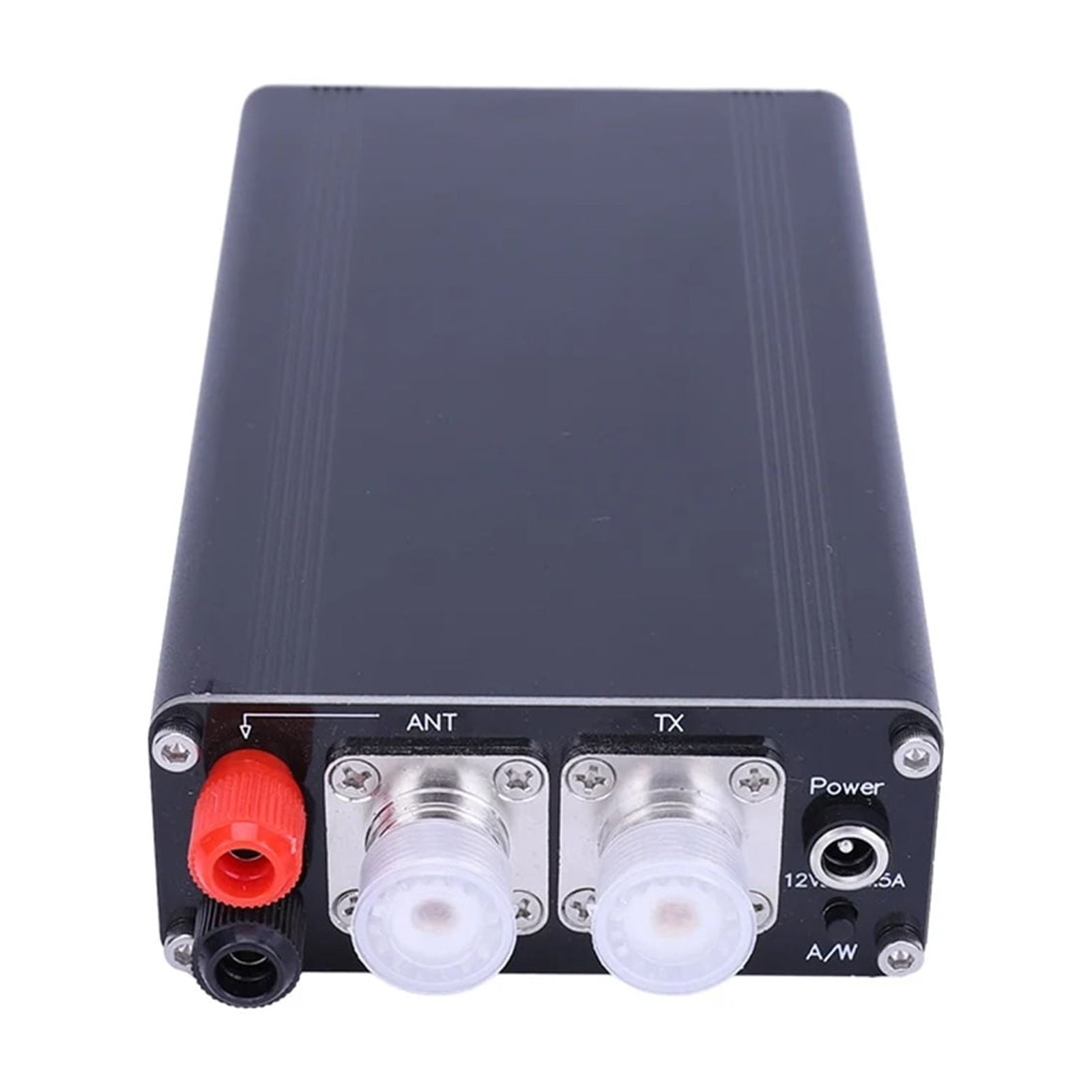

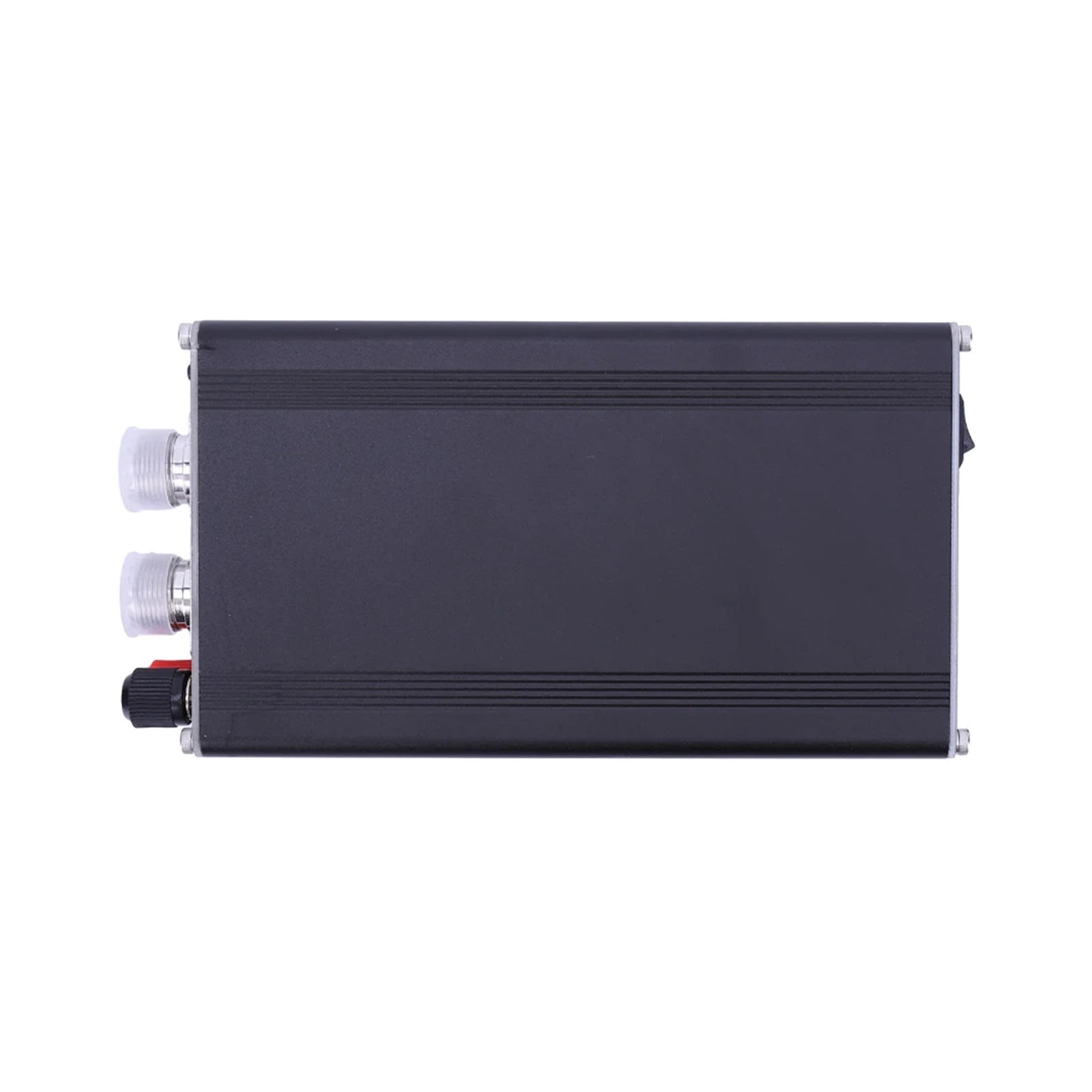

Portable HF Antenna Tuner 1.8MHz-30MHz Auto Antenna Tuner By N7DDC+0.91 OLED ATU-100 Case Box V3.2 Version
Product details
| Management number | 238181020 | Release Date | 2026/07/11 | List Price | US$46.30 | Model Number | 238181020 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<p>Specification:</p><p>Allowable supply voltage range: DC 10-15V</p><p>Maximum current consumption: 400 mA</p><p>Maximum operating power: 100 W</p><p>Maximum possible measured power: 150 W</p><p>Minimum power required to start tuning: 5 W</p><p>Minimum possible measurement power: 0.1 W</p><p>Measurement resolution for power up to 10 W: 0.1 W</p><p>Measurement resolution for power greater than 10W: 1W</p><p>Power measurement accuracy error: ±10 per cent</p><p>Maximum mounting inductance: 8.53H inductance</p><p>Minimum installation step: 0.05H</p><p>Maximum installed capacity: 1869 pF</p><p>Minimum capacitance mounting step: 10 pF</p><p>Typical consumption 100-200 mA</p><p>1. At present, the optional functions are 1-5w start and adjust, 10 seconds screen self-extinguishing/normal light, full-automatic/manual mode and so on.</p><p>2.Default is 1w start to adjust, the screen is always on, manual/automatic switching mode</p><p>Product size: 173x88x38mm/6.81x3.46x1.5inch</p><p></p><p>1 x Automatic Antenna Tuner</p><p>1 x Connection Cable</p>
- Specification:
- Allowable supply voltage range: DC 10-15V
- Maximum current consumption: 400 mA
- Maximum operating power: 100 W
- Maximum possible measured power: 150 W
- Minimum power required to start tuning: 5 W
- Minimum possible measurement power: 0.1 W
- Measurement resolution for power up to 10 W: 0.1 W
- Measurement resolution for power greater than 10W: 1W
- Power measurement accuracy error: ±10 per cent
- Maximum mounting inductance: 8.53H inductance
- Minimum installation step: 0.05H
- Maximum installed capacity: 1869 pF
- Minimum capacitance mounting step: 10 pF
- Typical consumption 100-200 mA
- 1. At present, the optional functions are 1-5w start and adjust, 10 seconds screen self-extinguishing/normal light, full-automatic/manual mode and so on.
- 2.Default is 1w start to adjust, the screen is always on, manual/automatic switching mode
- Product size: 173x88x38mm/6.81x3.46x1.5inch
- 1 x Automatic Antenna Tuner
- 1 x Connection Cable
| Frequency band type | HF |
|---|---|
| Watts | 100 Watts |
| Volts | 10 V, 15 V |
| Brand | Momo |
| Accessories | 1 x Automatic Antenna Tuner 1 x Connection Cable |
| Features | OLED Display |
| Height | 1.5" |
| Model name | ATU-100 |
| Weight | 0.04 oz |
| Has written warranty | No |
| Retail packaging | Single Piece |
